Subsection Logarithms and Exponents
Before we look at logarithmic functions, letβs quickly review exponents and logs. For a particular base, letβs say 5, taking a logarithm is the opposite operation for raising to a power. For example, if we raise base 5 to a power of \(\alert{2}\text{,}\) we get
\begin{equation*}
5^\alert{2} = 25 ~~~~ \text{and thus} ~~~~ \log_5 {(25)} = \alert{2}
\end{equation*}
We can say that a logarithm is actually an exponent. Asking for the log base 5 of 25 is asking "what power of 5, or what exponent on base 5 will give me 25?"
Example 5.31.
Write each logarithmic equation as an equivalent exponential equation.
-
\(\displaystyle \log_3 {(81)} = 4\)
-
\(\displaystyle \log_b {(32)} = 5\)
Solution.
-
The logarithm asks "To what power must I raise 3 to get 81?" The base is 3 and the logarithm (or exponent) is 4, so
\(3^4 = 81\text{.}\)
-
The logarithm asks "To what power must I raise
\(b\) to get 32?" The base is
\(b\) and the logarithm (or exponent) is 5, so
\(b^5 = 32\text{.}\)
For a more thorough review of logarithms you can refer to
Section 4.3.1.
Checkpoint 5.32 QuickCheck 1.
Which of these could you use to estimate the value of
\(\log_5 {(378)}\) ?
-
-
Find the fifth root of 378.
-
-
Now weβll consider functions defined in terms of logarithms, or logarithmic functions. For example,
\begin{equation*}
f(x)=\log_2 {(x)}
\end{equation*}
is a logarithmic function. In order to understand logarithmic functions better, we first investigate how they are related to more familiar functions, the exponential functions.
Subsection Inverse of the Exponential Function
Inverse functions are really a generalization of inverse operations. For example, raising to the \(n\)th power and taking \(n\)th roots are inverse operations. In fact, we use the following rule to define cube roots:
\begin{equation*}
\sqrt[3]{b} = a ~~~~\text{ if and only if }~~~~ a^3 = b
\end{equation*}
Compare this rule to the definition of inverse functions from
SectionΒ 5.1.
Inverse Functions.
Suppose \(g\) is the inverse function for \(f\text{.}\) Then
\begin{equation*}
g(b) = a~~~~~ \text{ if and only if }~~~~~f(a) = b
\end{equation*}
In this case,
\(~g(x) = \sqrt[3]{x}~\) and
\(~f(x) = x^3~\text{,}\) and the equations above tell us that the two functions
\(~f(x) = x^3~\) and
\(~g(x) = \sqrt[3]{x}~\) are inverse functions.
In
ChapterΒ 4, we saw that a similar rule relates the operations of raising a base
\(b\) to a power and taking a base
\(b\) logarithm, because they are inverse operations.
Conversion Formulas for Logarithms.
For any base \(b \gt 0, b\ne 1\text{,}\)
\begin{equation*}
\blert{\log_{b}{(x)} = y} ~~~~\text{ if and only if }~~~~ \blert{b^y = x}
\end{equation*}
We can now define the
logarithmic function,
\(~g(x) = \log_{b}{(x)}\text{,}\) that takes the log base
\(b\) of its input values. The conversion formulas tell us that the log function,
\(~g(x) = \log_{b}{(x)}\text{,}\) is the inverse of the exponential function,
\(~f(x) = b^x\text{.}\)
Logarithmic Function.
The logarithmic function base \(b\text{,}\)
\begin{equation*}
~g(x) = \log_b (x)~\text{,}
\end{equation*}
is the inverse of the exponential function of the same base, \(f(x) = b^x\text{.}\)
Subsection Graphs of Logarithmic Functions
What does the graph of a log function look like? We can use exponential functions to help us.
We can obtain a table of values for
\(~g(x) = \log_2 (x)~\) by making a table for
\(~f(x) = 2^x~\) and then interchanging the columns, as shown in the tables below. You can see that the graphs of
\(~f(x) = 2^x~\) and
\(~g(x) = \log_2 (x)\text{,}\) shown in the figure, are symmetric about the line
\(y = x\text{.}\)
| \(x\) |
\(f(x)=2^x\) |
| \(-2\) |
\(\dfrac{1}{4}\) |
| \(-1\) |
\(\dfrac{1}{2}\) |
| \(0\) |
\(1\) |
| \(1\) |
\(2\) |
| \(2\) |
\(4\) |
| \(x\) |
\(g(x)=\log_{2}{(x)}\) |
| \(\dfrac{1}{4}\) |
\(-2\) |
| \(\dfrac{1}{2}\) |
\(-1\) |
| \(1\) |
\(0\) |
| \(2\) |
\(1\) |
| \(4\) |
\(2\) |
The same procedure works for graphing log functions with any base: If we want to find values for the function
\(~y=\log_b (x)\text{,}\) we can find the values for the exponential function
\(~y=b^x\text{,}\) and then interchange the
\(x\) and
\(y\) values in each ordered pair.
Example 5.33.
Graph the function
\(~f(x)=10^x~\) and its inverse
\(~g(x)=\log_{10}{(x)}~\) on the same axes.
Solution.
We start by making a table of values for the function
\(f(x)=10^x\text{.}\) We can make a table of values for the inverse function,
\(~g(x) = \log_{10}{(x)}~\text{,}\) by interchanging the components of each ordered pair in the table for
\(f\text{.}\)
| \(x\) |
\(f(x)\) |
| \(-2\) |
\(0.01\) |
| \(-1\) |
\(0.1\) |
| \(0\) |
\(1\) |
| \(1\) |
\(10\) |
| \(2\) |
\(100\) |
| \(x\) |
\(g(x)\) |
| \(0.01\) |
\(-2\) |
| \(0.1\) |
\(-1\) |
| \(1\) |
\(0\) |
| \(10\) |
\(1\) |
| \(100\) |
\(2\) |
We plot each set of points and connect them with smooth curves to obtain the graphs shown above.
Checkpoint 5.34 Practice 1.
Complete the table of values and graph the function
\(~h(x) = \log_4 (x)\text{.}\)
| \(x\) |
\(~\dfrac{1}{4}~\) |
\(~1~\) |
\(~2~\) |
\(~4~\) |
\(~16~\) |
| \(\log_4 (x)\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
Solution.
| \(x\) |
\(~\dfrac{1}{4}~\) |
\(~1~\) |
\(~2~\) |
\(~4~\) |
\(~16~\) |
| \(\log_4 (x)\) |
\(-1\) |
\(0\) |
\(\dfrac{1}{2}\) |
\(1\) |
\(2\) |
Checkpoint 5.35 QuickCheck 2.
What is the
\(y\)-intercept of the graph of
\(~y=\log_5 (x)\) ?
-
\(\displaystyle (0,1)\)
-
\(\displaystyle (1,0)\)
-
\(\displaystyle (0,5)\)
-
You can also see that while an exponential growth function increases very rapidly for positive input values, its inverse, the logarithmic function, grows extremely slowly.
In addition, the logarithmic function
\(~y = \log_b (x)~\) has the following properties.
Logarithmic Functions \(~y = \log_b (x)\).
-
Domain: all positive real numbers
-
Range: all real numbers
-
\(x\)-intercept: \((1, 0)\)
-
\(y\)-intercept: none
-
Vertical asymptote at \(x = 0\)
-
The graphs of \(~y = \log_b (x)~\) and \(~y = b^x~\) are symmetric about the line \(y = x\text{.}\)
Checkpoint 5.37 QuickCheck 3.
The domain of the function
\(~g(x)=\log_3 (x)\) is
-
-
-
all non-negative numbers.
-
Checkpoint 5.38 Pause and Reflect.
Why does the function
\(~f(x)=\log (x)~\) grow so slowly?
Subsection More About Inverse Functions
Letβs take a closer look at the relationship between functions and their inverse functions. In Section 5.1 we saw that an inverse function "undoes" the effects of the function, and vice versa. In other words, if we apply a function and then its inverse to an input, we return to that input. For example, consider the function \(~f(x)=x^3~\) and its inverse function \(~g(x)=\sqrt[3]{x}\text{.}\) Weβll start with an input of \(x=5\text{,}\) first apply the function \(f\text{,}\) and then apply the function \(g\) to the output. In function notation, that operation looks like this.
\begin{equation*}
g(\blert{f(5)}) = g(\blert{5^3}) = g(125) = \sqrt[3]{125} = 5
\end{equation*}
We start by applying the innermost function, namely
\(f\text{,}\) to get
\(5^3 = 125\text{,}\) and then apply
\(g\text{,}\) to get
\(\sqrt[3]{125} = 5\text{.}\) We have returned to out original input.
Checkpoint 5.54 Practice 7.
In
ExampleΒ 5.4 of Section 5.1 we found that the inverse of the function
\(f(t) =6+2t\) is
\(g(t)=\dfrac{t-6}{2}.\)
-
Show that
\(g(f(7)) = 7.\)
-
Show that
\(f(g(30)) = 30.\)
Solution.
In each case, start by evaluating the innermost function.
These examples illustrate a general rule about inverse functions.
Functions and Inverse Functions.
Suppose \(g\) is the inverse function for \(f\text{.}\) Then
\begin{equation*}
g\left(f(x)\right) = x~~~\text{ and }~~~f\left(g(y)\right) = y
\end{equation*}
as long as \(x\) is in the domain of \(f\text{,}\) and \(y\) is in the domain of \(g\text{.}\)
Because a logarithmic function is the inverse of the exponential function with the same base, each undoes the effect of the other. For example, the function \(~g(x) = \log_2 (x)~\) is the inverse of \(~f(x) = 2^x\text{.}\) So, if we start with \(x = 3\text{,}\) apply \(f\text{,}\) and then apply \(g\) to the result, we return to the original number, 3.
\begin{equation*}
x=\alert{3}\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{exponential function}}}}
f(\alert{3})=2^{\alert{3}}=8
\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{log function}}}}
g(8)=\log_2 8 =
\mathrel{\mathop{\alert{3}}^{\blert{\text{Original}}}_{\blert{\text{number}}}}
\end{equation*}
And because \(~f(x)=b^x~\) and \(~g(x)=\log_b {(x)}~\) are inverse functions, we can write these operations in one expression as
\begin{equation*}
g(f(3)) = \log_2{\left(2^{\alert{3}}\right)} = \alert{3}
\end{equation*}
We evaluate the expression starting with the inside function, \(~f(3) = 2^3 = 8\text{,}\) and then compute the log base 2 of the result. Applying the exponential function and then the log function with the same base returne us to the original input.
Because the log and the exponential are inverse functions, similar calculations hold for any value of
\(x\) and any base
\(b \gt 0\text{,}\) so that
\(~\log_b\left(b^x\right) = x\text{.}\)
Example 5.55.
Simplify each expression.
-
\(\displaystyle \log_{4}{(4^6)}\)
-
\(\displaystyle \log_{8}\left({8^{2a+3}}\right)\)
Solution.
-
In this expression, we start with \(6\text{,}\) apply the exponential function with base \(4\text{,}\) and then take a logarithm base \(4\text{.}\) Because the logarithm is the inverse of the exponential function, we return to the original number, \(6\text{.}\)
\begin{equation*}
x=\alert{6}\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{exponential function}}}}
4^{\alert{6}}
\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{log function}}}}
\log_{4}\left(4^{\alert{6}}\right) =
\mathrel{\mathop{\alert{6}}^{\blert{\text{Original}}}_{\blert{\text{number}}}}
\end{equation*}
-
The input of the exponential function is the expression
\(2a + 3\text{.}\) Because the bases of the log and the exponential function are both
\(8\text{,}\) they are inverse functions, and applying them in succession returns us to the original input. Thus,
\(\log_{8}\left({8^{2a+3}}\right) = 2a + 3\text{.}\)
Checkpoint 5.56 Practice 8.
Simplify each expression.
-
\(\displaystyle \log_{10}{(10^6)}\)
-
\(\log_{w}{(w^{x+1})},\) for
\(w \gt 0, ~ w\ne 1\)
We can also apply the two functions in the opposite order. For example,
\begin{equation*}
2^{\log_2 (\alert{8}) }= \alert{8}
\end{equation*}
To see that this equation is true, we simplify the exponent first. We start with \(8\text{,}\) and apply the log base \(2\) function. Because \(\log_2 8 = 3\text{,}\) we have
\begin{equation*}
\alert{8}\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{log function}}}}
\log_{2}{\alert{8}}=3
\mathrel{\mathop{\rightarrow}^{\blert{\text{Apply the}}}_{\blert{\text{exponential function}}}} =
2^{\log_2 \alert{8} } = 2^3 =
\mathrel{\mathop{\alert{8}}^{\blert{\text{Original}}}_{\blert{\text{number}}}}
\end{equation*}
Using function notation, the caluclation above looks ike this.
\begin{equation*}
f(g(8)) = 2^{\log_2{(\alert{8})}} = \alert{8}
\end{equation*}
(Remember the order of operations: do whatβs inside of parentheses first, to get \(g(8) = \log_2{(8)}\text{.}\)) In other words, applying first the log function and then the exponential function returns the original input value.
Of course, a similar equation holds for any positive value of \(x\) and any base \(b \gt 0, b\ne 1\text{:}\)
\begin{equation*}
\blert{b^{\log_b x} = x}
\end{equation*}
Example 5.57.
Simplify each expression.
-
\(\displaystyle 10^{\log_{10}{(1000)}}\)
-
\(\displaystyle Q^{\log_{Q}{(25)}}\text{, for } Q \gt 0, Q\ne 1\)
Solution.
-
Think of simplifying the exponent first:
\(\log_{10}{(1000)} = 3\text{.}\) Then
\begin{equation*}
10^{\log_{10}{(1000)}} = 10^3 = 1000
\end{equation*}
We first found the exponent on 10 that gives 1000, then we raised 10 to that exponent (namely 3), so we get 1000.
-
The expression \(\log_{Q}{25}\) asks for the exponent on \(Q\) that gives \(25\text{.}\) Letβs call that exponent \(k\text{,}\) so that \(\log_{Q}{(25)} = k\text{.}\) Then \(Q^{\log_{Q}{(25)}} = Q^k\text{,}\) which gives us \(25\text{.}\)
Checkpoint 5.58 Practice 9.
Simplify each expression.
-
\(\displaystyle 4^{\log_4 {(64)}}\)
-
\(\displaystyle 2^{\log_{2}{(x^2+1)}}\)
We summarize these relationships as follows.
Exponential and Logarithmic Functions.
Because \(~f(x) = b^x~\) and \(~g(x) = \log_{b}{(x)}~\) are inverse functions for \(b \gt 0, b\ne 1\text{,}\)
\begin{equation*}
\blert{\log_{b}{(b^x)} = x}\text{, for all }x ~~~~~\text{ and }~~~~~\blert{b^{\log_b (x)} = x}\text{, for }x \gt 0
\end{equation*}
In Chapter 4 we solved exponential equations by using the conversion equations to rewrite them in logarithmic form. The fact that
\(~\log_{b}{b^x} = x~\) gives us another way to think of the solution; we can take the log of both sides of the equation. Weβll use this method in the next Example. Recall from
Inverse Function Notation in Section 5.1 that the inverse function for a function
\(f\) is often denoted by
\(f^{-1}\text{.}\)
Example 5.59.
-
Find the inverse of the function \(f(x) = 2^{x-3} - 4\text{.}\)
-
Graph \(f\) and \(f^{-1}\) on the same grid.
-
State the domain and range of \(f\) and of \(f^{-1}\text{.}\)
Solution.
-
We write the function as \(~y = 2^{x-3} - 4\text{,}\) and solve for \(x\) in terms of \(y\text{.}\) First, we isolate the power:
\begin{equation*}
\begin{aligned}[t]
y + 4 \amp= 2^{x-3}\amp\amp \blert{\text{Take the log base 2 of each side.}}\\
\log_{2}{(y + 4)} \amp = \log_{2}{(2)}^{x-3} \amp\amp \blert{\text{Simplify the right side.}}\\\\
\log_{2}{(y + 4)}\amp = x-3\\
3 + \log_{2}{(y + 4)} \amp = x
\end{aligned}
\end{equation*}
The inverse function is \(~f^{-1}(y) = 3 + \log_{2}{(y + 4)}\text{.}\) However, to graph both \(f\) and \(f^{-1}\) on the same grid, we write the inverse function as \(~f^{-1}(x) = 3 + \log_{2}{(x + 4)}\text{.}\)
-
To graph
\(f\text{,}\) we translate the graph of
\(~y = 2^x~\) by
\(3\) units to the right and
\(4\) units down. The graph of
\(f^{-1}\) looks like the graph of
\(y = \log_2 (x)\text{,}\) but shifted
\(4\) units to the left and
\(3\) units up. The graphs are shown below, along with the line
\(y = x\text{.}\)
-
The function
\(f\) is a translation of an exponential function, and its domain consists of all real numbers. Because the graph is shifted
\(4\) units down, the range of
\(f\) is
\((-4,\infty)\text{.}\)
Because the log of a negative number or zero is undefined, for \(~f^{-1}(x) = 3 + \log_{2}{(x + 4)}\text{,}\) we must have \(x + 4 \gt 0\text{,}\) so the domain of \(f^{-1}\) is \(x \gt -4\text{.}\) We can verify on the graph that the range of \(f^{-1}\) includes all real numbers. Thus,
\begin{equation*}
\begin{aligned}[t]
\amp\text{Domain}(f) = \text{all real numbers} = \text{Range}(f^{-1})\\
\amp\text{Range}(f) = (-4,\infty) = \text{Domain} (f^{-1})
\end{aligned}
\end{equation*}
Checkpoint 5.60 Practice 10.
-

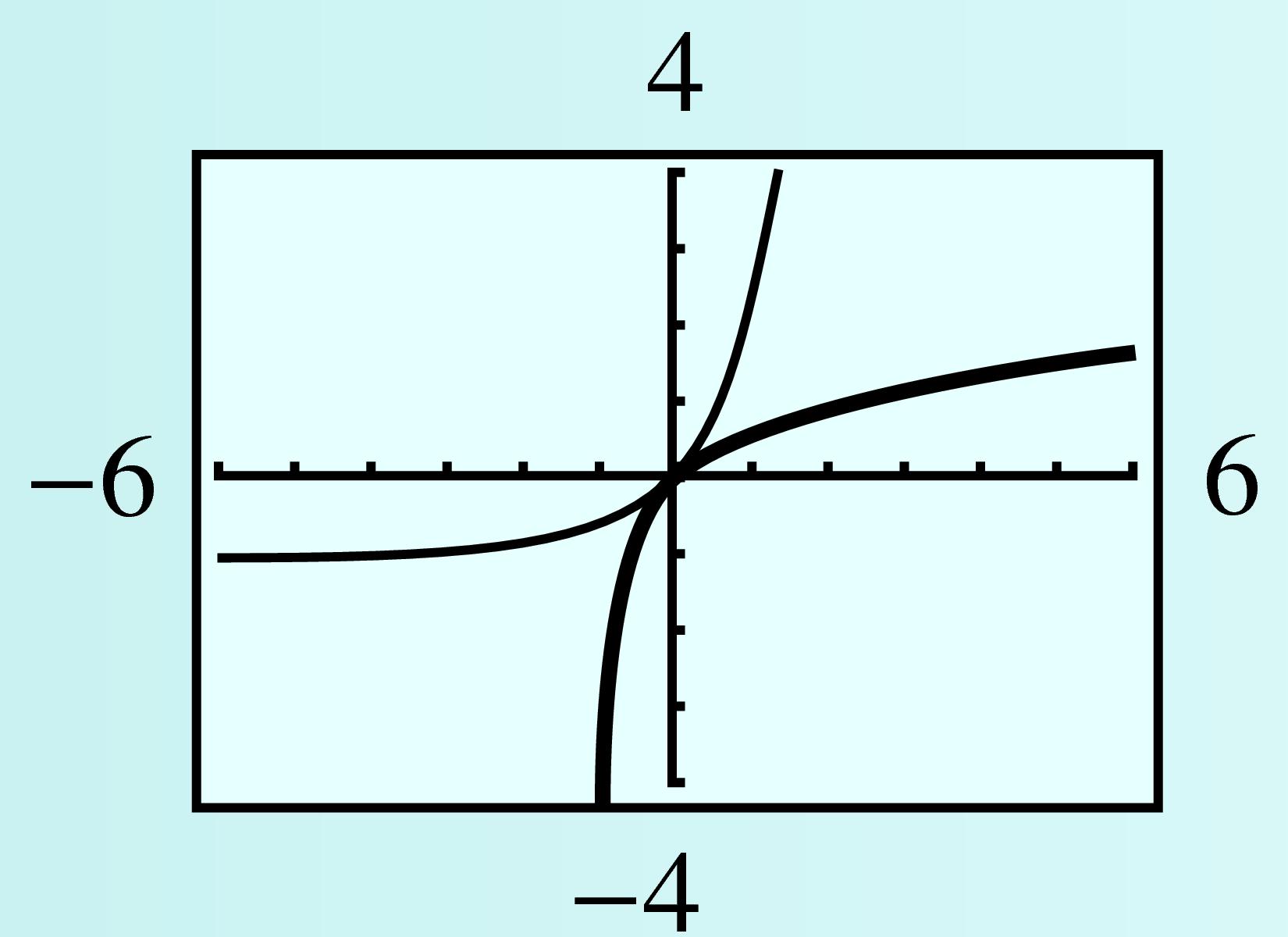

Find the inverse function for
\(f(x) = 2 \log(x + 1)\text{.}\)
-
Graph \(f\) and \(f^{-1}\) in the window
\begin{equation*}
\begin{aligned}[t]
\text{Xmin} \amp = -6 \amp\amp \text{Xmax} = 6\\
\text{Ymin} \amp = -4 \amp\amp \text{Ymax} = 4
\end{aligned}
\end{equation*}
-
State the domain and range of
\(f\) and
\(f^{-1}\text{.}\)
Solution.
-
\(\displaystyle f^{-1}(x) = 10^{x/2} - 1 \)
-
-
Domain of
\(f\text{:}\) \((-1,\infty)\text{;}\) Range of
\(f\text{:}\) all real numbers; Domain of
\(f^{-1}\text{:}\) all real numbers; Range of
\(f^{-1}\text{:}\) \((-1, \infty)\)
Checkpoint 5.61 Pause and Reflect.
Compare the graphs of
\(f(x)=\left(\log \dfrac{1}{x}\right)\) and
\(g(x)=-\log (x)\text{,}\) and explain.
